جهاز قياس وتحويل مستقل ROSSMA® IIOT-AMS ANALOG Ex X4

Name: جهاز قياس وتحويل مستقل ROSSMA® IIOT-AMS ANALOG Ex X4
Brand: ROSSMA
Availability: InStock

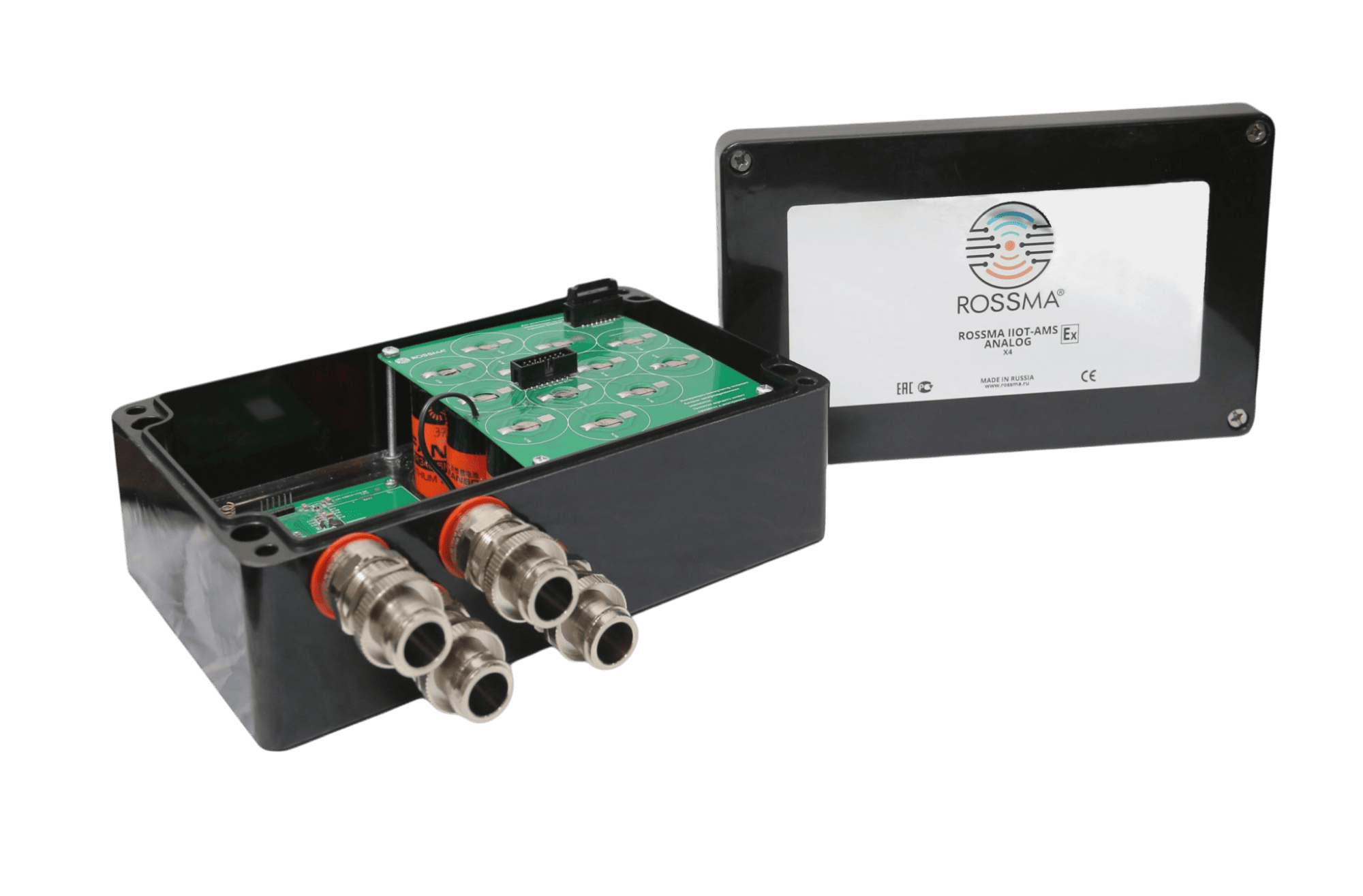

Multi-channel ROSSMA IIOT-AMS ANALOG Ex X4 meter-switch for analog (current, resistive) signals with wireless data transmission over LPWAN networks (LoRaWAN, NB-IoT standards). This switch is equipped with four analog inputs.

*ROSSMA ANALOG X4 126 A/h LoRaWAN/NB-IoT*

WARNING: Meter-switches are equipped with non-rechargeable lithium thionyl chloride (LiSOCl₂) battery ER34615M/T manufactured by Fanso. Attempting to charge the battery may cause fire!

Explosion-proof modifications (Ex) have explosion protection marking 1Ex e IIC T4 Gb X / 1Ex db IIC T5 Gb X and are designed for operation in hazardous areas according to GOST R 31610.0-2014. Protection rating IP66.

The meter-switch supports two operating modes:

✅ Operation with Active Instruments

Operation with instrumentation devices powered by external power supply.

*ROSSMA ANALOG X4*

✅ Operation with Passive Instruments

Operation with instrumentation devices powered by the built-in battery of the meter-switch.

*ROSSMA ANALOG X4*

Battery Life Calculator 🔋

Technical Specifications

General Specifications:

Connection interface: 4-20 mA current loop or resistive pt1000, Ni1000, TK5000
Number of inputs: 4 (four)
Operating temperature range t,°C: -55…+85
Built-in temperature sensor: yes (sent with every connection)
Antenna type: internal
Built-in battery charge measurement: yes (sent with every connection)
Mounting: cable ties to support, on DIN rail, wall-mounted

14 A/h (Standard)

28 A/h (Compact Increased Capacity)

126 A/h (Extended Capacity)

DC 3.3V (External Power)

220V (Mains Power)

Power type: Built-in 3.6 V battery, capacity 14 A/h, form factor D

Battery life:

Transmission Interval	Battery Life
1 min	~90 days
2 min	~180 days
10 min	~300 days
1 hour	~3 years 150 days
24 hours (once daily)	~10 years

Housing dimensions: 80×75×55 mm

Application: Standard operating conditions, frequent data transmission

Maximum packets: 40,000 ± 10%

Power type: Built-in 3.6 V battery pack, capacity 28 A/h

Battery life:

Transmission Interval	Battery Life
1 min	~180 days
2 min	~360 days
10 min	~2 years
1 hour	~10 years*
24 hours (once daily)	~10 years*

Housing dimensions: 80×75×55 mm

Application: Compact solution with extended battery life

Maximum packets: 80,000 ± 10%

Power type: Built-in 3.6 V battery block, capacity 126 A/h

Battery life:

Transmission Interval	Battery Life
1 min	~2 years
2 min	~4 years
10 min	~7 years
1 hour	~10 years*
24 hours (once daily)	~10 years*

Housing dimensions: 260×160×90 mm

Application: Hard-to-reach locations, infrequent battery replacement

Maximum packets: 360,000 ± 10%

Power type: External DC power source from 3.3 V

Service life: Unlimited (depends on power source)

Housing dimensions: 260×160×90 mm

Application: Sites with available power supply, continuous operation

Power type: 220 V AC mains (PWR modification)

Service life: Unlimited

Housing dimensions: 260×160×90 mm

Application: Industrial facilities with power supply

* Maximum lithium thionyl chloride battery service life is limited to 10 years due to natural self-discharge, regardless of capacity.

Capabilities

Standard configuration switch equipped with 4 (four) inputs
Configurable measurement interval from 1 time/min
Forced measurement capability
Supports operation with both active (externally powered) and passive (powered directly from ROSSMA IIOT-AMS Analog Ex switch) instrumentation devices

LED Indication

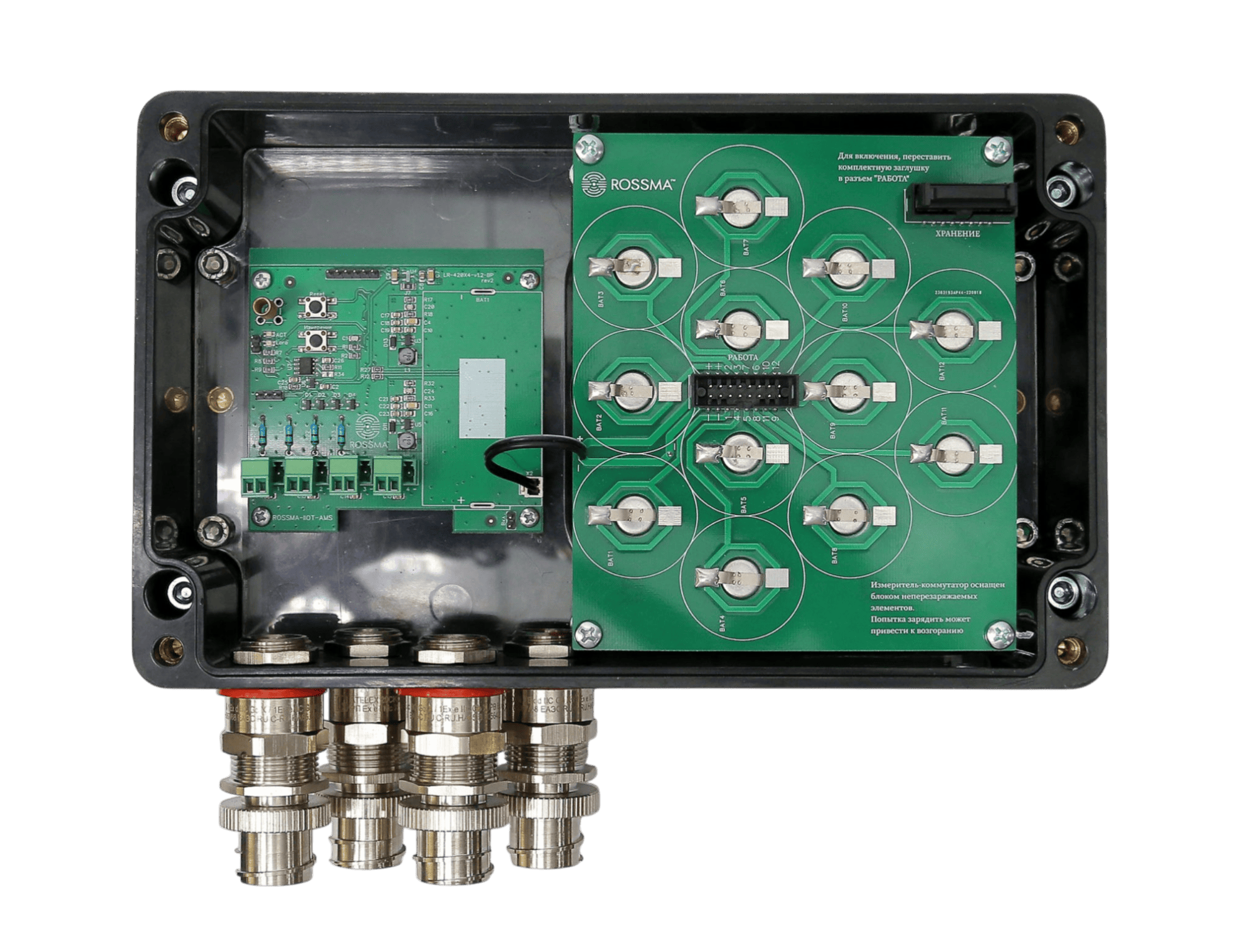

ROSSMA IIOT-AMS ANALOG meter-switch PCB has the following indicators:

ACT - receiving data from sensor
LORA - sending/receiving data via wireless network
DC/DC - power supply start indicator from meter-switch to instrumentation device
Sensor - power

Control

ROSSMA IIOT-AMS ANALOG meter-switch PCB has two buttons:

RESET – device reset
BUTTON (Sample) – when pressed, meter-switch starts measurement and data transmission via wireless network

*ROSSMA ANALOG X4*

Switch Configuration and Programming

Physical Firmware Setup

Meter-switch programming is performed using a programmer via programming connector located on motherboard.

Remote Software Configuration

Meter-switch operating parameters are configured using ROSSMA Configurator.
