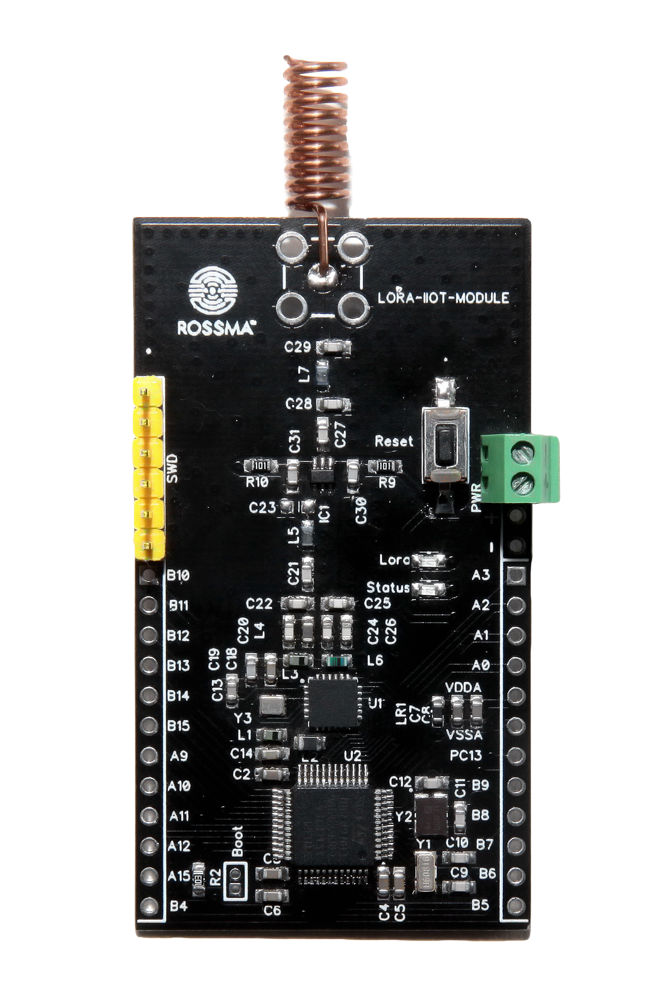

ROSSMA® IIOT-AMS MODULE LoRaWAN

LoRaWAN ROSSMA® IIOT-AMS MODULE is based on the Semtech SX1261 transceiver and the STM32L microcontroller.

LoRaWAN
ROSSMA® IIOT-AMS MODULE LoRaWAN

IIOT-AMS MODULE LoRaWAN

IIOT-AMS MODULE LoRaWAN

IIOT-AMS MODULE LoRaWAN

IIOT-AMS MODULE LoRaWAN

Works with following sensors:

SCOPES OF APPLICATION:

Production of sensors, sensors and controllers for  Internet of things (IoT) and industrial Internet of things (IIoT).

Features
  • Frequency range: 137 MHz to 1.02 GHz
  • Maximum transmission speed: 300 kb/s
  • Modulation format: FSK, GFSK, GMSK, MSK, LoRa, OOK
  • Supply voltage – max.: 3.7 V
  • Supply current reception: 12 mA
  • Supply current transmission: 120 mA
  • Output power: – 1 dBm to 20 dBm
Body:
module
Power:
max.: 3.7 V
