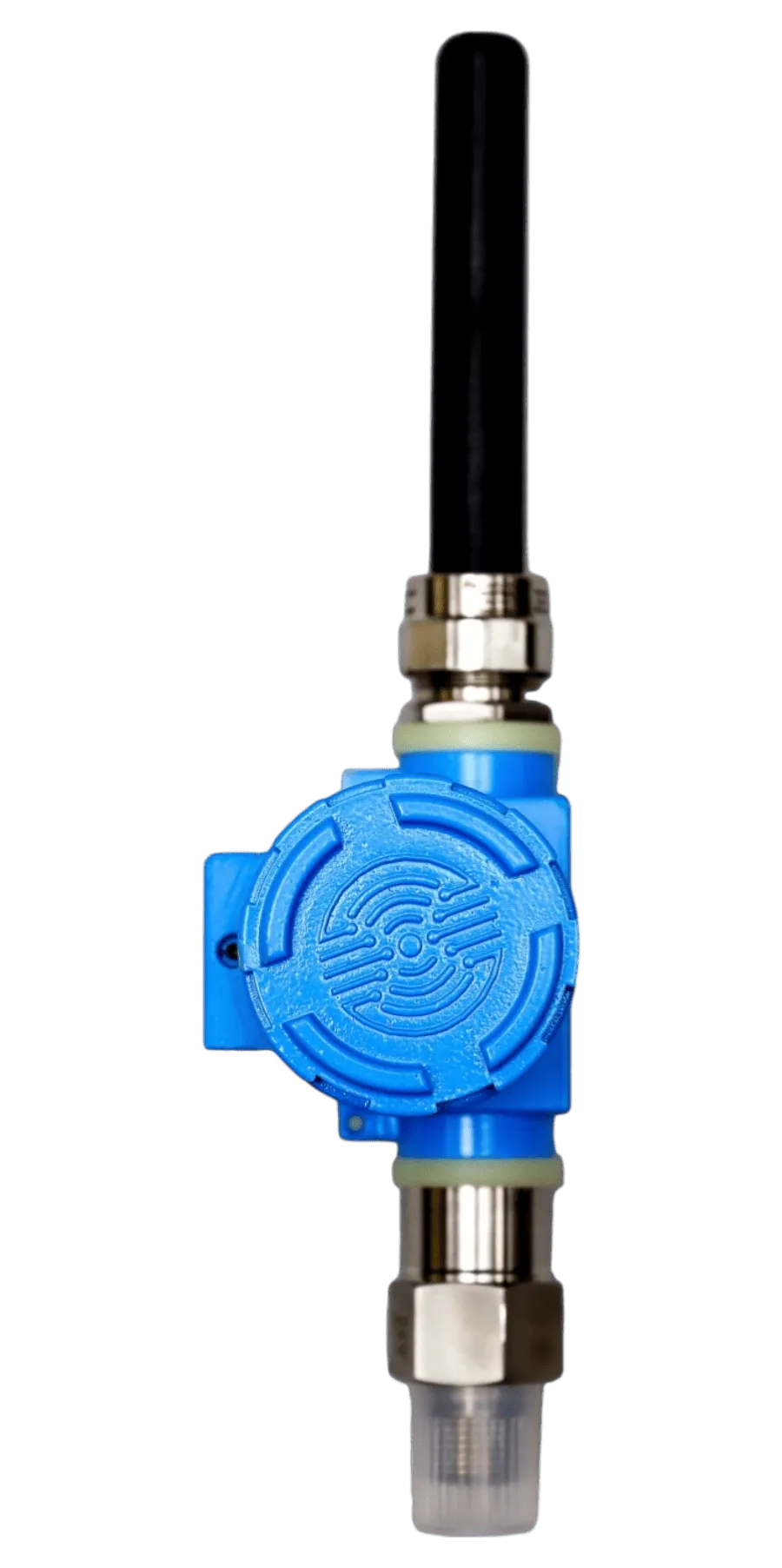

Autonomous Wireless Pressure Transmitter ROSSMA IIOT-AMS P-METER
New autonomous wireless pressure transmitter IIOT-AMS P-METER, designed for integration into Industrial Internet of Things (IIoT) and automated process control systems (APCS).
Overview
Features
The key feature of the device is a built-in wireless communication module that ensures transmission of measured pressure data to data collection and monitoring systems without the need for cable routing.
PRESSURE MONITORING MODE:
- Background monitoring: partial wake-up every 5 sec (configurable) to compare pressure with setpoints; if within range — return to sleep without data transmission
- Emergency transmission: immediate data transmission when pressure exceeds configured setpoints
- Scheduled communication: full wake-up with measurement and data transmission (default every 15 min)
| Parameter | ROSSMA IIOT-AMS ANALOG 4-20 mA + Metran | ROSSMA IIOT-AMS P-METER EX |
| Explosion protection | 1Ex e IIC T4 Gb, IP66 | 1Ex db IIC T5 Gb X / PB Ex db I Mb X, IP66 |
| Pressure range | Determined by sensor | 0…7 / 20 / 35 / 70 MPa |
| Operating temperature range | –55…+85°C | –55…+85°C |
| Measurement time (normal mode) | 5-10 sec (sensor warm-up) | No more than 2 sec |
| Measurement time (monitoring) | 3–5 sec | 2 sec / 0.5 sec (fast) |
| Power consumption during measurement | 40–200 mA | 10 mA (4–20 times less) |
| Current in LoRa transmission mode | 100 mA (up to 1 sec) | 100 mA (up to 1 sec) |
| Relative error | 1.5% | 0.2% (7.5 times more accurate) |
| Battery life 14 Ah (without monitoring) | 40K measurements | 220K (5.5 times more) |
| Battery life 14 Ah (with monitoring) | 50K measurements | >1M (20 times more) |
| Battery life at 15 min interval | ~13 months | 76 months (~6 years) (6 times longer) |
| Battery life with monitoring (fast measurement 1/min) | Not recommended | 40 months (~3.3 years) (unique feature) |
* Actual values depend on settings and operating conditions.
Key advantages of ROSSMA IIOT-AMS P-METER EX:
⚡ 20 times more measurements • 🎯 7.5 times higher accuracy • 🔋 Up to 6 years longer battery life
1Ex db IIC T5 Gb X / PB Ex db I Mb X
Autonomous up to 10 years
Documentation
User Manual Open in Wiki ↗
A wireless pressure transducer designed for automatic monitoring, control, and management of industrial processes. It converts gauge pressure into a digital signal and transmits encrypted data packets over a LoRaWAN wireless network.

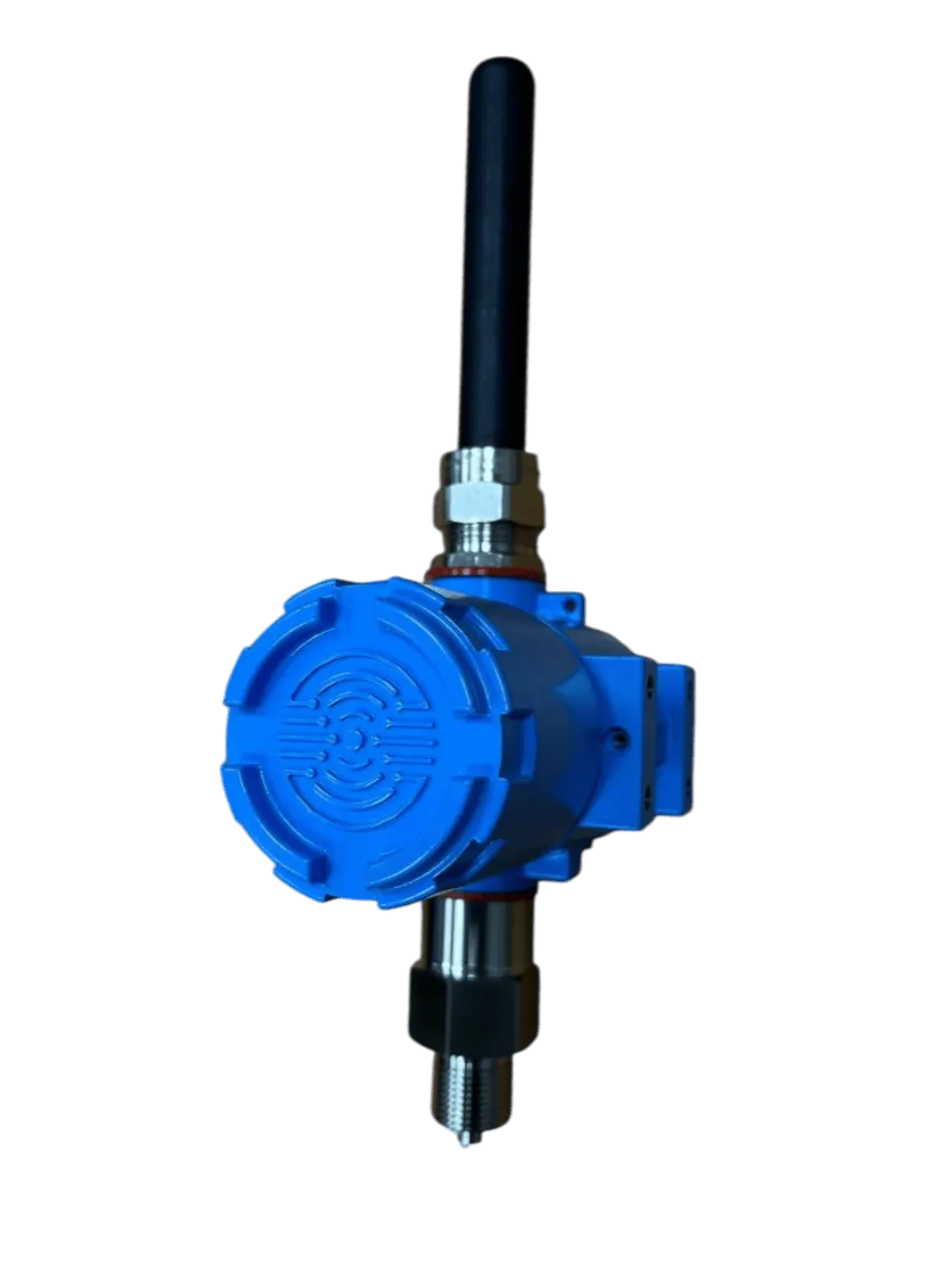

Fig. ROSSMA IIOT-AMS P-METER Ex — autonomous wireless pressure transducer
Purpose
P-METER Ex is a specialized autonomous device for continuous pressure monitoring in industrial environments. Unlike universal ANALOG meter-switches, P-METER Ex features a built-in high-precision strain gauge pressure sensor made of 316L stainless steel and is optimized for minimal power consumption during pressure measurement.
Applications:
- Oil and gas industry — pipeline and wellhead pressure monitoring
- Water supply and sewerage — network pressure control
- District heating — coolant pressure monitoring
- Industrial automation — process control
- Mining industry — hydraulic system monitoring
Explosion protection: Marking 1Ex db IIC T5 Gb X / PB Ex db I Mb X — the device is designed for use in hazardous areas. Protection rating IP66.
Certificate of conformity TR CU 012/2011: EAEU RU C-RU.АЯ45.В.00306/25 (valid until 02.12.2030).
Technical Specifications
Metrological Characteristics
| Parameter | Value |
|---|---|
| Measurement ranges | 0–7 / 0–10 / 0–20 / 0–35 / 0–70 MPa |
| Basic accuracy | ±0.2% |
| Calibration interval | 3 years |
| Measurement time (standard mode) | ≤2 sec |
| Measurement time (fast mode) | 0.5 sec |
Operating Conditions
| Parameter | Value |
|---|---|
| Media temperature | -40…+125°C |
| Operating temperature range | -55…+80°C |
| Relative humidity | up to 98% |
| Protection rating | IP66 |
| Explosion protection marking | 1Ex db IIC T5 Gb X / PB Ex db I Mb X |
Power Supply and Reliability
| Parameter | Value |
|---|---|
| Power supply | Built-in 3.6 V battery |
| Current consumption during measurement | 10 mA |
| Battery lifespan | up to 10 years |
| Battery life (without monitoring) | 220,000 measurements |
| Battery life (with monitoring) | >1,000,000 measurements |
| Device service life | at least 20 years |
| MTBF | 180,000 hours |
| Built-in non-volatile memory | yes |
Design
| Parameter | Value |
|---|---|
| Housing dimensions | 260 × 130 × 70 mm |
| Weight | ≤1.5 kg |
| Housing material | ADC12 alloy |
| Strain gauge material | 316L stainless steel |
LoRaWAN Specifications
| Parameter | Value |
|---|---|
| Device class | A |
| Communication range | up to 5 km (urban) / up to 15 km (rural) |
| Frequency plan | RU-868 |
| Data encryption | AES-128 |
| Remote configuration | yes |
Transmitted Data
Each communication session transmits:
| Parameter | Description |
|---|---|
| Pressure | Current pressure value (MPa) |
| Timestamp | Time of measurement |
| Temperature | Built-in temperature sensor reading |
| Battery voltage | Battery charge level |
Operating Modes
P-METER Ex supports an intelligent pressure monitoring mode optimized for maximum battery life:
1. Background Pressure Monitoring
Partial wake-up every 5 seconds (configurable) to compare current pressure against set thresholds. If pressure is within normal range — return to sleep mode without data transmission. This ensures continuous monitoring with minimal power consumption.
2. Alarm Transmission
Immediate data transmission to the server when pressure exceeds configured thresholds (upper/lower limit). Provides instant response to emergency situations.
3. Scheduled Communication
Full wake-up with measurement and data transmission on schedule. Default interval — every 15 minutes (configurable).
Background monitoring is a unique feature of P-METER Ex. The device checks pressure every 5 seconds but only transmits data when necessary. This enables a battery life exceeding 1,000,000 measurements.
Battery Life
Estimated autonomy (14 Ah battery)
| Mode | Autonomy |
|---|---|
| 15-minute transmission interval (no monitoring) | 76 months (~6 years) |
| Monitoring + fast measurement 1/min | 40 months (~3.3 years) |
WARNING: The device is equipped with a non-rechargeable lithium-thionyl chloride (LiSOCl₂) battery. Attempting to recharge the battery may cause a fire!
🧮 Battery Life Calculator
Battery Life
Comparison with ANALOG + Metran Solution
| Parameter | ANALOG 4-20 mA + Metran | P-METER Ex |
|---|---|---|
| Explosion protection | 1Ex e IIC T4 Gb, IP66 | 1Ex db IIC T5 Gb X, IP66 |
| Pressure range | Determined by sensor | 0–7 / 0–20 / 0–35 / 0–70 MPa |
| Operating temperature | -55…+85°C | -55…+85°C |
| Measurement time (standard) | 5–10 sec (sensor warm-up) | ≤2 sec |
| Measurement time (monitoring) | 3–5 sec | 2 sec / 0.5 sec (fast) |
| Current consumption | 40–200 mA | 10 mA (4–20× lower) |
| Accuracy | 1.5% | 0.2% (7.5× better) |
| Battery life 14 Ah (no monitoring) | 40K measurements | 220K (5.5× more) |
| Battery life 14 Ah (with monitoring) | 50K measurements | >1M (20× more) |
| Autonomy (15-min interval) | ~13 months | 76 months (~6 years, 6× longer) |
| Pressure monitoring 1/min | Not recommended | 40 months (~3.3 years) |
* Actual values depend on settings and operating conditions.
Key Advantages
- 20× more measurements — battery life >1,000,000 measurements with monitoring
- 7.5× better accuracy — ±0.2% vs 1.5%
- Up to 6 years of autonomous operation — 76 months at 15-min interval
- Built-in strain gauge — 316L stainless steel, no external sensor required
- Minimal power consumption — measurement current only 10 mA
- Background pressure monitoring — checks every 5 sec without battery drain for transmission
- db-level explosion protection — approved for mining operations (PB Ex db I Mb X)
- 3-year calibration interval — reduced metrological maintenance costs
Software Protection
Metrologically significant software is protected by hardware — "electronic sealing" technology. Protection level — "high" per R 50.2.077–2014.
This prevents unauthorized modification of metrologically significant device parameters.
Additional Information
- Battery Replacement — battery replacement guide
- Communication Protocols — control commands and data formats
- ROSSMA Configurator — device configuration
- Troubleshooting — diagnostics and problem solving
Related Pages
- Device Catalog — all ROSSMA IIoT-AMS devices
- System Architecture — ROSSMA network components
- LoRaWAN Technology — protocol description
ROSSMA® IIOT-AMS P-Meter Ex Wireless pressure transmitter with LoRaWAN data transmission
The pressure transmitter is designed for use in automatic monitoring, regulation, and process control systems. It converts gauge pressure into a digital signal with subsequent transmission of encrypted data packets over a wireless network.
METROLOGICAL CHARACTERISTICS:
- Measurement ranges: 0–7 / 0–10 / 0–20 / 0–35 / 0–70 MPa
- Basic reduced error: ±0.2%
- Calibration interval: 3 years
- Measurement time: no more than 2 sec
OPERATING CONDITIONS:
- Measured medium temperature: -40…+125°C
- Operating temperature range: -55…+80°C
- Relative humidity: up to 98%
- Protection rating: IP66
- Explosion protection marking: 1Ex db IIC T5 Gb X / PB Ex db I Mb X
POWER AND RELIABILITY:
- Supply voltage: built-in 3.6 V battery
- Battery life: up to 10 years
- Device service life: at least 20 years
- Mean time between failures: 180,000 hours
- Built-in non-volatile memory: yes
LoRaWAN TECHNICAL SPECIFICATIONS:
- LoRaWAN® device class: A
- Radio range: up to 5 km in urban areas; up to 15 km in rural areas
- Frequency plan: RU-868
- Remote configuration: yes
- Data encryption: AES-128
DESIGN:
- Housing dimensions, mm: 260×130×70
- Weight: no more than 1.5 kg
- Housing material: ADC12 alloy
- Strain gauge material: 316L stainless steel
SOFTWARE PROTECTION:
- Metrologically significant software is hardware-protected (“electronic sealing”)
- Protection level: “high” per R 50.2.077–2014
